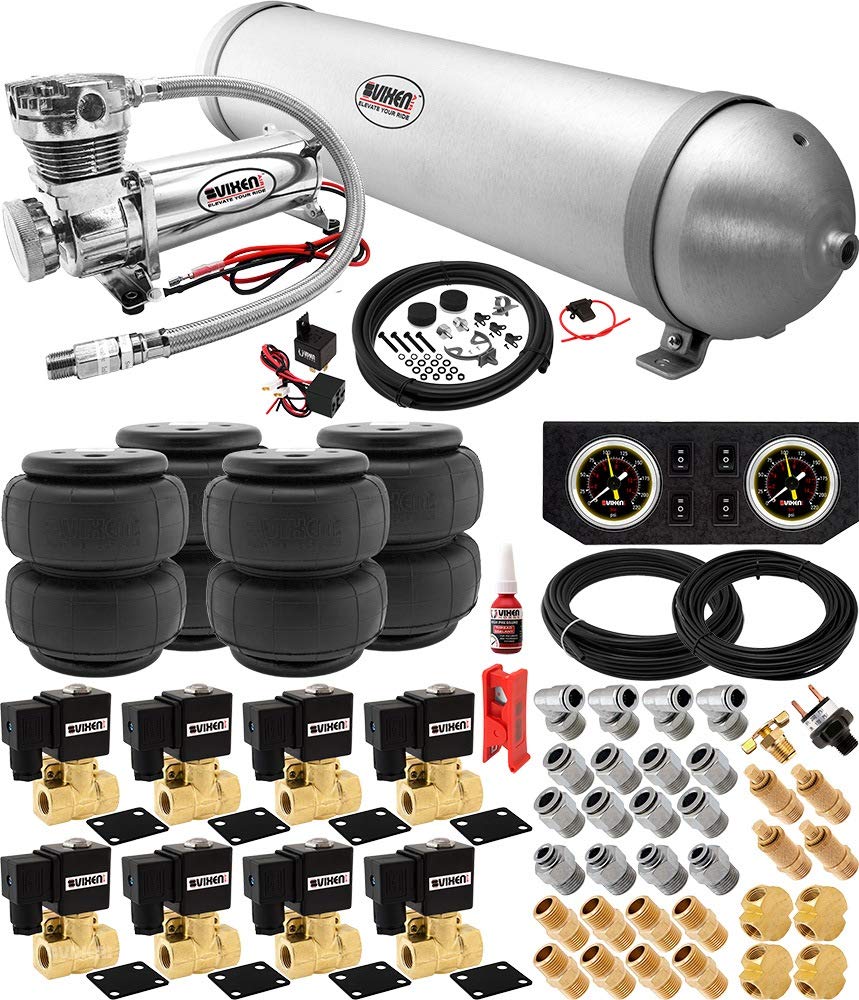

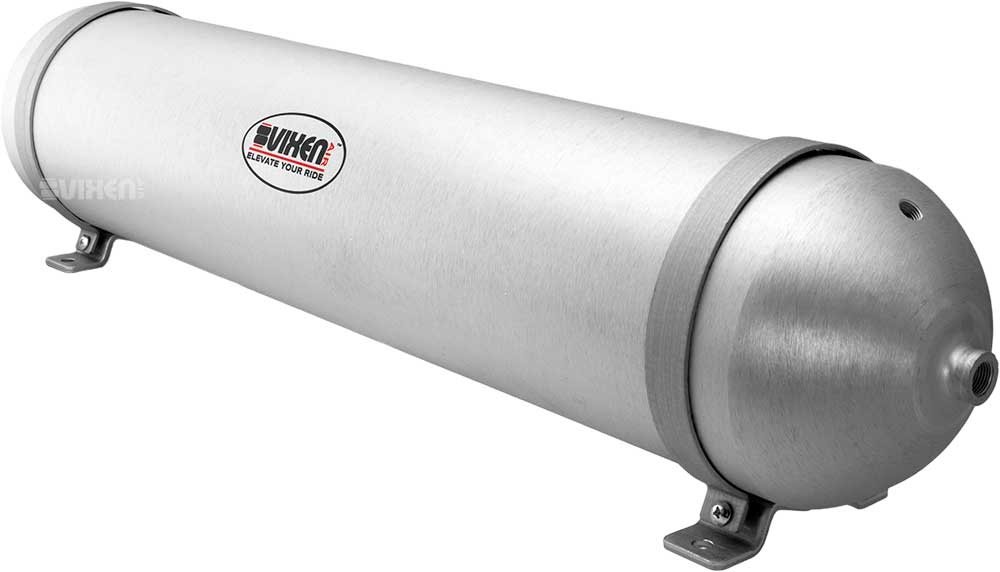

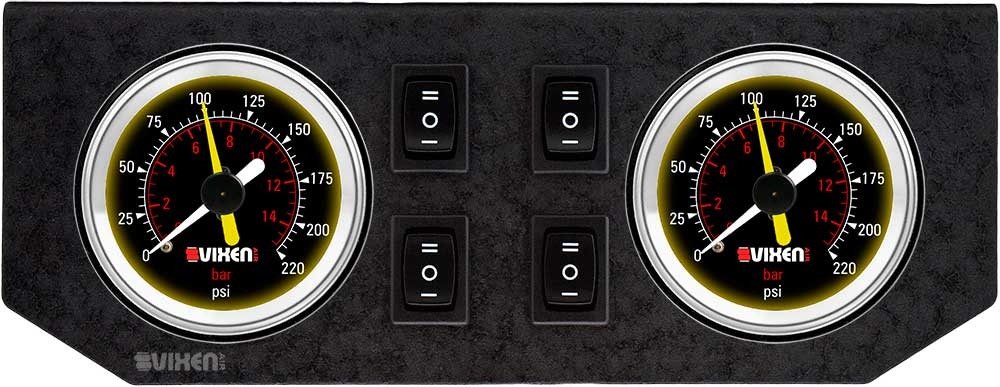

VXX3805FB/4850C Air Suspension System with 5 Gallon Aluminum Air Tank and 200 PSI Air Compressor About Vixen Air Vixen Air offers the most comprehensive line of air tanks, compressors, valves, air bags and pneumatic accessories specially designed for air suspension. Our goal is to consistently deliver performance, reliability and value to our customers. A system that will set your vehicle above the rest. This full system comes with a 5 Gallon seamless aluminum air tank featuring 9 air ports, one 200 PSI heavy duty chrome look air compressor with remote filter kit and a complete accessory kit which includes a set of eight 3/8" NPT air valves, four 2600-style air bags, 50 feet of 3/8" OD hose, 50 feet of 1/4" OD hose, dual gauge panel with four switches, pressure switch, relay, fuse, fittings, thread sealant and hose cutter. Capacity: 5 Gallon (18 Liter) 200 PSI Air Compressor (12V) 3/8" NPT 250 PSI High Flow Electric Air Valves (8) 2600 Suspension Air Springs (4) Dual Gauge Metal Dash Panel with Two Dual Needle Air Gauges and Four Switches (Black) Hoses, Pressure Switch, Relay, Fuse, Fittings, Thread Sealant and Hose Cutter Included Automatic Reset Thermal Overload Protector Moisture and Dust Resistant Compressor Highlights 5 Gallon Air Tank (9 Ports) Tank has four 1/2" NPT ports in the front, one 3/8" NPT port, two 1/4" NPT ports on the left side, one 3/8" NPT port on the right side and one 1/4" NPT port at the bottom. 200 PSI Air Compressor 12V maintenance free heavy duty air compressor with stainless steel braided leader hose with check valve for 3/8" NPT female port. Lightweight and Rust Resistant Because is made of aluminum, this tank has the benefit of being much lighter than a standard steel tank while being also 100% resistant to rust. Accessory Kit A set of eight 3/8" NPT air valves, four 2600-style air bags, 50 feet of 3/8" OD hose, 50 feet of 1/4" OD hose, dual gauge panel with four switches, pressure switch, relay, fuse, fittings, thread sealant and hose cutter. SPECIFICATIONS - COMPRESSOR/S - Type Single Pack Power 12V Maximum Pressure 200 PSI Duty Cycle (100 PSI) 100% Dimensions (L x W x H) 13-3/4" x 4" x 6-3/4" - AIR TANK - Capacity 5 Gallon Material Aluminum Total Ports 9 Working Pressure 200 PSI Dimensions (L x H x D) 33-3/8" x 7-½" x 6-5/8" - AIR VALVES/MANIFOLD - Quantity 8 Power 12V Max Pressure 250 PSI Inlet Port/s 3/8" NPT Outlet Port/s 3/8" NPT - AIR SPRINGS - Quantity 4 Load Range 349 - 3055 LBS Usable Stroke 9.7" Air Port 1/2" NPT Mounting 3/8" UNC x 2 (Top), 3/8" x 3 UNC (Bottom) - PRESSURE GAUGE - Air Pressure 0 - 220 PSI Needle Dual Color (Face) Black (Backlighted) - PRESSURE SWITCH - Thread Port 1/4" NPT (Male) Pressure Rating 170 PSI ON / 200 PSI OFF - AIR FILTER (WATER TRAP) - Quantity N/A Air Port (Inlet/Outlet) N/A Drain Port N/A - AIR LINES - 1- Size / Length 3/8" OD / 50 FT 2- Size / Length 1/4" OD / 50 FT
